Enumeration of Remarkable Families of Polyominoes

Dominique Gouyou-Beauchamps

LRI, Universit de Paris Sud (Orsay)

Algorithms Seminar

Mars 2, 1998

[summary by Cyril Banderier]

A properly typeset version of this document is available in postscript and in pdf.

If some fonts do not look right on your screen, this might be fixed by configuring your browser (see the documentation here).

1   Introduction

Polyominoes are objects sprung from recreative mathematics and from different domains in physics (such as Ising's model; its generalisation, Pott's model; directed percolation and branched polymer problems) [14, 20, 21, 25]. Two great classes of problems relative to polyominoes are David Klarner began to study polyomino tilings in 1965. There are still open questions in this field [12, 15, 16, 17], however several (un)decidability results are known [1, 2]. What is more, aperiodic tilings are today a new spring of inspiration in noncommutative geometry [8]. In the remainder, we only consider enumeration problems. Exact asymptotics of polyominoes on a square lattice is still unknown. Accurate results are then limited to special families of polyominoes, for which we know a generative grammar. We are therefore brought back to the study of a functional equation which defines the generating function. Nevertheless, obtaining of a closed form (i.e., an explicit solution) or even any form of solution often remains difficult. We will show several methods to obtain them.

2   Definitions

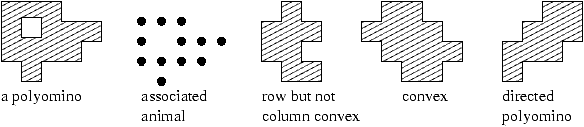

A polyomino is a connected set on a lattice. A polyomino is said to be convex if it is both column-convex and row-convex. A polyomino is said to be directed if, for each couple of points of the polyomino, there exists a path only made of North and West steps which links this two points.

One can find in previous summaries [4, 13] how to obtain functional equations satisfied by the generating functions (most of the methods are tricky decompositions [5] of polyominoes into very regular smaller pieces, such as ``strata'' or ``wasp-waist'' decompositions). For results in dimension greater than 2, see [3, 6].

3   Differential Equation Method

Enumeration of convex polyominoes with perimeter 2n on the honeycomb (or ``hexagonal'') lattice can be solved with this method. Let Pn the number of such polyominoes with perimeter 2n+6, Enting [10] gives the following result. The generating function P(x)=n=0pnxn satisfies the differential equation
P''(x) (x2-7x4-2x5+12x6+8x7)+P'(x)(-11x-4x2+53x3+22x4-40x5-16x6)
+P(x)(20+22x-52x2-20x3-16x4-32x5)=20+22x-52x2+8x3+4x4+8x5
which leads to
P(x)=
1-2x+x2-x4-x2 (1-4x2)1/2
(1+x)2 (1-2x)2
.

Let us mention that the package GFUN in Maple is able to make such translations (recurrences, differential equations, algebraic equations, closed forms), see [23].

4   Temperley's Method

We are going to illustrate Temperley's method [24] with the enumeration of column convex polyominoes (on a square lattice) with respect to perimeter [7]. The generating function
G(y)=

n 2
y2n
can be rewritten as
G(y)=

r 1
gr(y)
where the gr satisfy a recurrence
gr+4-2(1+y2)gr+3+(1+3y2+3y4-y6)gr+2-2y2(1+y2)gr+1+y4gr=0
and g1, g2, g3, g4, the ``initial conditions'', are known.

If we ``guess'' that gr has the shape lr (or is a linear combination of such monomials), we can obtain l by solving the fourth degree equation associated to the recurrence formula, and we find, as the equation easily splits:
(l2-l(1+y+y2-y3)+y4)(l2-l (1-y+y2+y3)+y2)=0.
So solving the two second degree equations gives four values (closed forms) l1, l2, l3, l4, two of which are O(1) at 0. We then have to find the Aj such that gr=j=14 Aj ljr. But gr=O(y2r+2) at 0, so Ai=0 if li=O(1). There are still two coefficients to determine, say A2 and A4. They can be found by solving a system involving g1, g2, l2, l4, A2, A4 and one finally obtains a closed form
G(y)=
A2 l2
1-l2
+
A4 l4
1-l4
.
A very similar method is applied for unidirectional-convex polygons on the honeycomb lattice in [19].

5   Kernel Method

In his talk, Dominique Gouyou-Beauchamps has also presented an exploitation of the ``kernel method'' for the enumeration of parallelogram polyominoes with respect to horizontal and vertical half-perimeter, area and first column height, respectively marked by x, y, q, s.

Remember that the generating function P with respect to horizontal and vertical half-perimeter is easy to obtain: The wasp-waist decomposition directly leads to P=xy+xP+yP+P2 so
P(x, y)=
1-x-y-(1-2x-2y+x2+y2-2xy)1/2
2
.
The full generating function P(x, y, q, s) satisfies a more intricate equation (obtained by a strata decomposition), namely
P(x, y, q, s)=
xysq
1-ysq
+
xsq
(1-sq)(1-ysq)
P(x, y, q, 1)-
xsq
(1-sq)(1-ysq)
P(x, y, q, sq).
When q=1, this can be rewritten
(1-(1-x-y)s+y2) P(x, y, 1, s) =xsP(x, y, 1, 1)+xys(1-s).

It is typically the type of equation on which the kernel method applies. This method belongs to mathematical folklore (see [18], exercise 2.2.1.4 for an early example). It works as follows: If one cancels the kernel (1-(1-x-y)s+y2), i.e., one finds s0 such that (1-(1-x-y)s0+y2)=0, then one gets 0=xs0P(x, y, 1, 1)+xys0(1-s0), from which follows a closed form for P(x, y, 1, 1) and finally one obtains a closed form for P(x, y, 1, s), viz.,
P(x, y, 1, s) =
xs


1-x-y-(1-2x-2y-2xy+x2+y2)1/2
2



+xys(1-s)
1-(1-x-y)s+y2
.

6   Physicists' Guesses

We have already mentioned that polyominoes are present in physical problems and in fact the first people who found interesting results on this subject where physicists. They sometimes base their works on empirical results. For example, in [9], the authors are doing as if
Nrs=Nr-1s-1+Nrs-1+Nr+1s-1
(Nrs is the number of directed animals of size s with a ``compact source'' of size r) was a recurrence formula satisfied by the Nrs although it is only empirically verified for the first values. Nevertheless, they go on and find that
Nrs=
1
2p

2 p


0
(1+eit) e-irt (1+2 cos t)s-1 dt    and in particular    N1s=(s-1)!
s/2
q=0
s-q
q!2 (s-2q)!
.

Another example of a typical physicist's method is [14] (enumeration of directed animals on a strip of width k); they consider a transfer matrix as an operator acting on a spin space and are drawing their inspiration from standard techniques on integrable systems.

When k tends to infinity, they obtain:
an=

0 i n

n-1
i


i
i/2

   and thus

n o
an tn =
1
2



(
1+t
1-3t
)1/2 -1


.
Analysis of singularities gives
an ~ 3n n-1/2.

7   Matricial and Continued Fraction Method

We will show on a simple example (Dyck paths) how this method works. Let
dh(x)=

l 0
ah, l xl
the ordinary generating function of Dyck paths which end at height h.

A path of length n which ends at height h is either a path of length n-1 which ends at height h-1 followed by a NE step, or a path of length n-1 which ends at height h+1 followed by a SE step. Thus one obtains the following infinite system











d0(x)=1+x d1(x)
d1(x)=xd0(x)+xd2(x)
d2(x)=xd1(x)+xd3(x)


dh(x)=xdh-1(x)+xdh+1(x)



which can be written as







-1 x 0 0 ...
x -1 x 0 ...
0 x -1 x ...
0 0 x -1 ...

























d0(x)
d1(x)
d2(x)
d3(x)









=







-1
0
0
0









.

With an analog of Cramer's formula for infinite matrices, one has

d0(x)=
det







-1 x 0 0 ...
0 -1 x 0 ...
0 x -1 x ...
0 0 x -1 ...


















det







-1 x 0 0 ...
x -1 x 0 ...
0 x -1 x ...
0 0 x -1 ...


















=

lim
k
det
( )

k k
det
( )

k k
=

lim
k
Pk(x)
Qk(x)
where ()k k stands for the k k truncated associated matrices. The special structure of these matrices gives the recurrence


Pk(x)=-Qk-1(x)=-Pk-1(x)-x2 Pk-2(x)    with P1(x)=-1,
Qk(x)=-Qk-1(x)-x2Qk-2(x)    with Q1(x)=-1 and Q2(x)=1-x2.
from which follows
Pk(x)
Qk(x)
=
-Qk-1(x)
Qk(x)
=
-Qk-1(x)
-Qk-1(x)-x2 Qk-2(x)
=
1
1-x2
Qk-2(x)
-Qk-1(x)
=
1
1-x2
Pk-1(x)
Qk-1(x)
and then
d0(x)=

lim
k
Pk(x)
Qk(x)
=
1
1-
x2
1-
x2



hence
d0(x)=
1
1-x2d0(x)
   i.e.,    d0(x)=
1-(1-4x2)1/2
2 x2
.
In fact the continued fraction is a special case of a much more general result that we will express in the next section.

8   Multicontinued Fractions Theorem

We will need the following notations. Let (ll, k)0 k l be a family of elements of a commutative field and let (Pk)k 0 be a family of monic polynomials which satisfy a recurrence relation:
Pk+1(x)=xPk(x)-
k
i=0
lk, k-i Pk-i(x).
One then defines a multicontinued fraction by
L(l, t)=
1
1-l0, 0t -
p=1
lp, 0tp+1
p
i=1
1
1-li, it -
q=1
lq+i, 0tq+1
q
i=1
1



.
Let d be the operator defined by d(lk, l)=lk+1, l+1. We note P* the reciprocal polynomial of P:
P*(x):= x
deg(P)

P(
1
x
).

Theorem 1  [Roblet, Viennot]   If one sets li, j:=0 in L(l, t) for i k+1 and j i, one gets a rational fraction Lk(t), it is the k-th convergent of the multicontinued fraction L(l, t) and we have
Lk(t)=
d Pk*(t)
Pk+1* (t)
and the following approximation near t=0 holds
L(l, t)=Lk(t)+O(tk+1).

For a deeper understanding of links between continued fractions and combinatorics, see [11, 22]. The multicontinued fraction method allows to find the generating functions of diagonally convex directed, diagonally convex, parallelogram, vertically convex directed, vertically convex polyominoes and remains to be exploited to obtain generating functions of other classes of polyominoes or directed animals.

You are now ready to try the different kinds of methods presented here on your favourite class of polyominoes or even on other classes of combinatorial objects!
